Adjustable camera deep mount (Silver)

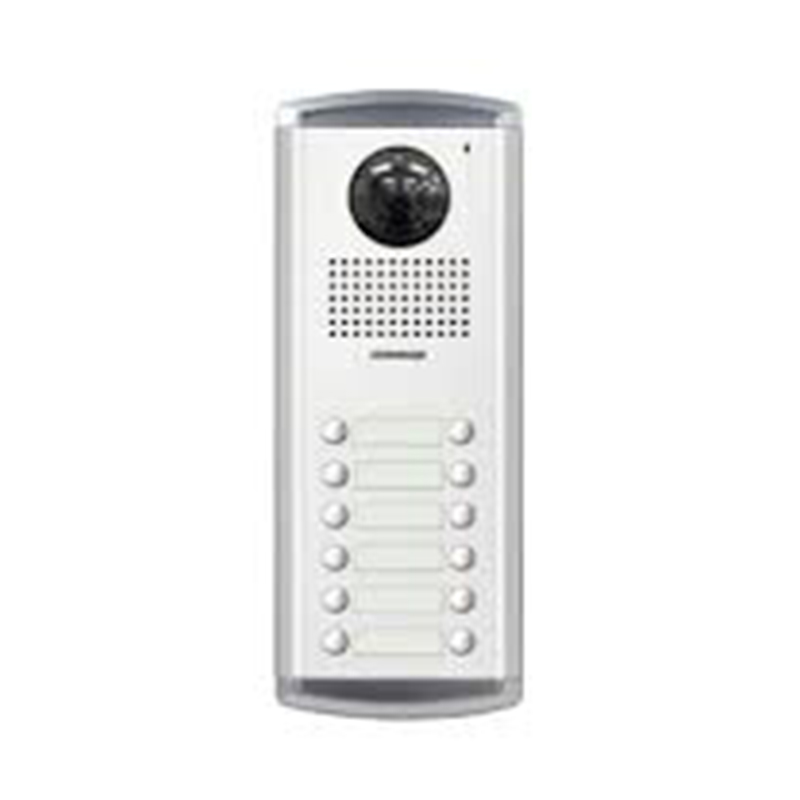

Intercom COMMAX DRC 12AC2

339,00 €
Price / kg:
Description
Features and Function
  • 12-button door camera for apartment building
  • Flush mounted type
  • Individual 4 wires to each apartment video doorphone
  • Compatible with Fine View series video doorphones such as CDV-35A, CDV-43U, CDV-70K, CDV-70U.
  • Requires power supply DC12V, model RF-1A (AC110V) or RF-12015S (AC110~AC240V) [Sold separately]
Specifications
  • Image device: 1/4" Color CCD
  • Power source: DC12V, 230mA
  • Installation system: 4 wires to each videophone
  • Communication ways: synchronous
  • Video transmission standard: NTSC
  • Minimum illumination: 0.1 Lux (300 mm from the camera)
  • View angle: Horizontal: 68º, Vertical: 55º
  • Operating temperature: -10ºC to 50ºC
  • Mounting type: flush mount
  • Flush box dimension: 299 x 114 x 50
  • Dimension: 316 x 123 x 16
