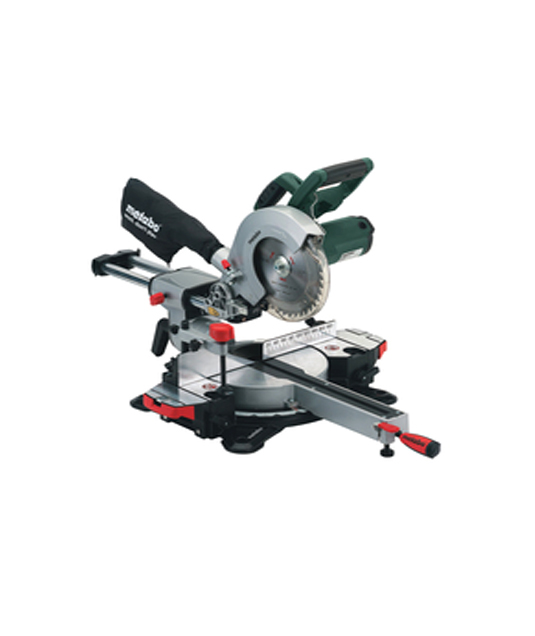

Metabo KGS216M
with sliding function for wide work pieces.
For sawing wood, coated panels and plastics
Non-slip rubber surface on handle and upper carry handle
Lateral handles
Transport lock and cable winder
Turntable with precise angle adjustment
Die-cast aluminium work bench
Laser for exact display of the cut
Freely adjustable table extension on both sides with a practical support surface and integrated crosscut fence
Integrated working light
Integrated cutting depth control
All scales visible from the working position
Chip collection bag for clean air at the workplace
Comparative technical values:
Dimensions L x W x H |
820 x 543 x 355 mm |
Support surface |
364 x 700 mm |
Maximum cutting width 90°/45° |
305 mm/205 mm |
Maximum cutting depth at 90°/45° |
65 mm/36 mm |
Maximum cross-section of the work piece |
|
- Straight cut 90°/90° |
305 x 65 mm |
- Double mitre 45°/45° |
205 x 36 mm |
Idle revolution |
5.000 /min |
Revolutions at rated load |
3.756 /min |
Cutting speed |
42 m/s |
Saw blade |
Ø 216 x 30 mm |
Turntable setting left/right |
47 °/47 ° |
