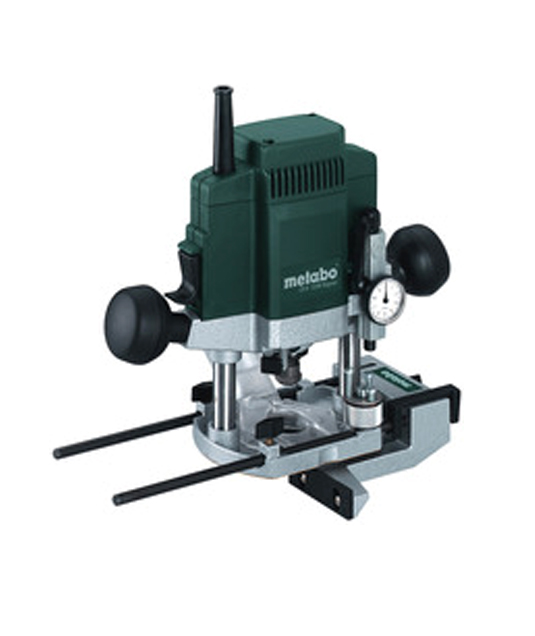

Metabo OFE1229
Dial gauge for fine tuning the moulding/routing depth with 0.1. mm precision
Three-level stop to preselect up to 3 different moulding/routing depths
Sturdy 2-column guide
Robust plastic-covered aluminium die cast bearing flange
Hardened and ground interchangeable collect chuck for precise concentricity of tools
Spindle lock for easy router bit change
(VTC) full-wave electronics
Very suitable for moulding/routing heat-sensitive materials and plastics.
Thumbwheel for preselection of speed
Overload protection
Turn the machine on and off without releasing the handle
Aluminium die cast base plate with coating for easy sliding
Parallel guide/ripping fence guided in prisms
Auto-stop carbon brushes
Precise parallel guide/ripping fence guided in prisms with fine adjustment
External dust extraction is possible
Can also be used in combination with the precision guide rail 6.31250
Comparative technical values:
|
Maximum stroke height |
50 mm |
|
Idle revolution |
5.000 - 25.500 /min |
|
Rated input power |
1.200 W |
|
Output power |
780 W |
|
Revolutions at rated load |
25.500 /min |
|
Collet bore of the collet chuck |
8 mm |
|
Weight (without power cable) |
3,4 kg |
Scope of delivery
Dial gauge for fine adjustment
Fine adjustment parallel guide/ripping fence
Extraction connector
open-jawed spanner
